HPE ProLiant DL345 Gen11 Parts
Find genuine HPE ProLiant DL345 Gen11 parts to keep your server running at peak performance. Whether you need to replace a failed component or upgrade for enhanced computing power, we offer a complete selection of memory, drives, power supplies, storage controllers, networking, processors, and more.
Available HPE DL345 Gen11 Parts:
- Memory: Upgrade with high-performance DDR5 RAM.
- Drives: Choose from enterprise SSDs, NVMe, SAS, and SATA HDDs.
- Storage Controllers: Ensure data protection with HPE Smart Array RAID controllers.
- Networking: High-speed Ethernet adapters and NICs for superior connectivity.
- Power Supplies: Redundant and energy-efficient power solutions.
- Processors: AMD EPYC CPUs for maximum compute power.
Built for enterprise workloads, virtualization, and cloud computing, these components ensure maximum efficiency and reliability in your DL345 Gen11 server.
✅ Need a specific HPE DL345 Gen11 part? Browse our selection or contact us for assistance.
Unique Options

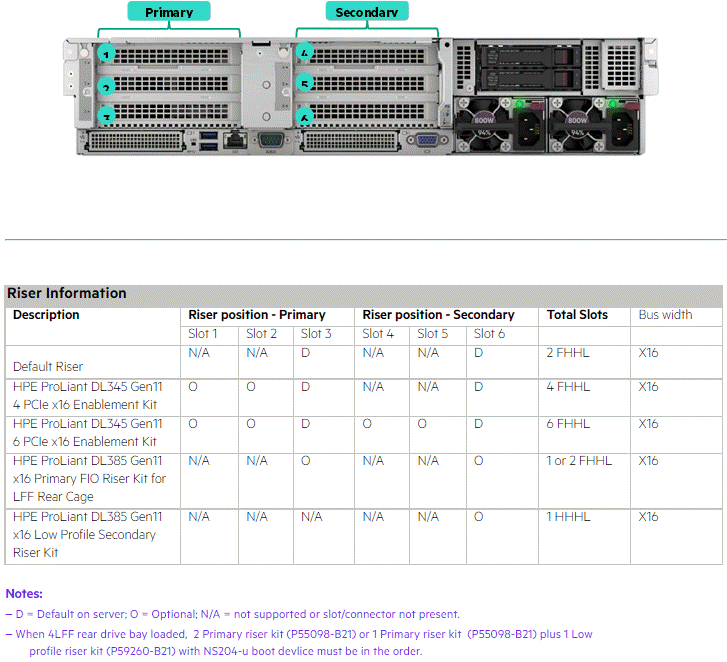

Risers
Notes: All the CTO servers are default ship with 2 PCIe Gen5 x16 risers, one at the primary riser slot 3 and another at the secondary riser slot 6.
Notes:
- Supports 4 PCIe Gen5 x16 risers, three(3) at the primary riser slot 1/2/3 and one(1) at the secondary riser slot 6.
- Cant be selected if 4LFF rear bay (P57113-B21) is in the order.
- Maximum 1 of 4 PCIe enablement kit (P57116-B21) or 6 PCIe enablement kit (P5117-B21) can be selected in the order.
Notes:
- Supports 6 PCIe Gen5 x16 risers, three(3) at the primary riser slot 1/2/3 and three(3) at the secondary riser slot 4/5/6.
- Cant be selected if 4LFF rear bay (P57113-B21) is in the order.
- Maximum one(1) 4 PCIe enablement kit (P57116-B21) or 6 PCIe enablement kit (P5117-B21) can be selected in the order.
Notes:
- Supports 1 PCIe Gen5 x16 risers at the Secondary riser slot 6.
- Require 4LFF rear bay (P57113-B21) is in the order
- Maximum one(1) this riser kit could be selected in the order

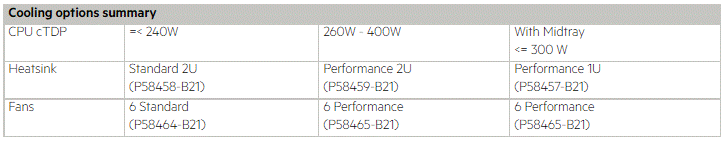

Cooling
Notes:
- For processors less than or equal to 240W, standard heat sink (P58458-B21) and 6 standard FAN kit(P58464-B21) are required.
- For processors more than or equal to 260W, performance heat sink kit (P58459-B21) and 6 performance FAN kit (P58465-B21) are required.
- For processors less than or equal to 300W is selected with 4LFF or 8SFF midtray is selected , 1U performance heat sink kit (P58457-B21) and 6 performance FAN kit (P58465-B21) are required.
$268
$203.00
Notes:
- Requires to select 6 fan kits in every DL345 Gen11 server
- For processors less than or equal to 240W, standard heat sink (P58458-B21) and 6 standard FAN kit(P58464-B21) are required.
- For processors more than or equal to 260W, performance heat sink kit (P58459-B21) and 6 performance FAN kit (P58465-B21) are required.
- 6 Performance Fan Kit (P58462-B21) are required if any of the below options is in the order
o 8SFF/4LFF Midtray (P57108-B21, P57109-B21, P57112-B21)
o 2SFF rear bay (P57110-B21) or 4LFF rear bay(P57113-B21)
o 100/200GB network adapters
o InfiniBand network adapters
Notes:
- The cooling options summary are supported base on SFF, LFF and EDSFF CTO servers.
- The cooling options summary of GPU CTO server will be available soon.
Drive Cage
Notes:
- Mixing of U.3 and U.2 cage & backplane kit is not supported.
- Mixing of 8SFF x4 backplane kit and 8SFF x1 backplane kit is not supported
- Maximum 1 of 2SFF x4 U.3 BC Front/Tertiary Stackable Drive Cage Kit (P57110-B21) or 2SFF x4 U.3 BC Side-by-Side Drive Cage Kit (P57111-B21) could be selected in the order
Notes:
- Supports 8 SFF of SAS/SATA/ NVMe (U.3) Basic Carrier (BC) Drives at the Mid Tray
- Requires processor less than or equal to 300W.
- Includes cables to smart array controllers at PCIe slot.
- Maximum one(1) this 8SFF x1 U.3 Midplane Backplane kit can be selected in the order.
- Requires 6 performance fan kit (P58465-B21)
- Requires 24SFF CTO server (P54206-B21) in the order
Notes:
- Supports 8 SFF of SAS/SATA/ NVMe (U.3) Basic Carrier (BC) Drives at the Mid Tray
- Requires processor less than or equal to 300W.
- Requires 6 performance fan kit (P58465-B21)
- Includes both Direct attach and smart array cables
- Maximum one(1) this 8SFF x4 U.3 Midplane Backplane kit can be selected in the order.
- If this 8SFF x4 U.3 Midplane Backplane kit is selected, no additional cable kit selection required for either direct attach or via smart array controllers at PCIe slot.
- Requires 8SFF CTO server (P54205-B21) in the order.
Notes:
- Supports 2 SFF of SAS/SATA/ NVMe (U.3) Basic Carrier (BC) Drives at the front bay or Rear Bay.
- Includes Smart Array cables
- Maximum one(1) 2SFF x4 U.3 BC Front/Tertiary Stackable Drive Cage Kit (P57110-B21) or 2SFF x4 U.3 BC Side-by-Side Drive Cage Kit (P57111-B21) could be selected in the order
- Maximum one(1) 2SFF x4 U.3 BC Front/Tertiary Stackable Drive Cage Kit (P57110-B21) or 4 LFF x1 Rear Bay Backplane kit (P57113-B21) could be selected in the order at the rear bay.
- If SFF media bay P57857-B21 is in the order, this 2SFF drive cage will be installed at the rear.
Notes:
- Supports 2 SFF of SAS/SATA/ NVMe ( U.3) Basic Carrier (BC) Drives at the front bay.
- Includes cables smart array controllers at OCP slot.
- Maximum one(1) 2SFF x4 U.3 BC Front/Tertiary Stackable Drive Cage Kit (P57110-B21) or 2SFF x4 U.3 BC Side-by-Side Drive Cage Kit (P57111-B21) could be selected in the order
- Maximum one(1) 2SFF x4 U.3 BC Side-by-Side Drive Cage Kit (P57111-B21) or 4 LFF x1 Backplane kit (P57114-B21) could be selected in the order
- Requires 8LFF CTO server (P54204-B21) in the order.
Notes:
- Supports 4 LFF of SAS/SATA Basic Carrier (BC) Drives at the Mid Tray
- Requires processor less than or equal to 300W.
- Requires 6 performance fan kit (P58465-B21) and 1 1U performance heat sink (P58457-B21) in the order
- Requires 4LFF x1 Backplane kit (P57114-B21) in the order.
- Maximum one(1) this 4 LFF x1 Midplane Backplane kit can be selected in the order.
- If this 4 LFF x1 Midplane Backplane kit is selected, no additional cable kit selection required for smart array controllers at PCIe slot or direct attach as the cable Included in the kit.
Notes:
- Supports 4 LFF of SAS/SATA Basic Carrier (BC) Drives at the front bay
- Maximum one(1) this 4 LFF x1 Midplane Backplane kit can be selected in the order.
- Maximum one(1) 2SFF x4 U.3 BC Side-by-Side Drive Cage Kit (P57111-B21) or 4LFF x1 Backplane kit (P57114-B21) could be selected in the order
- If this 4 LFF x1 Backplane kit is selected, no additional cable kit selection required for smart array controllers at PCIe slot or direct attach as the cable Included in the kit.
Notes:
- This Universal Media Bay kit includes cage, 2 USB and 1 DP port, supports 1 Optical Drives.
- Maximum one(1) this Universal Media Bay Kit can be selected in the order.
- Requires 8SFF CTO server (P54205-B21) in the order.
- If the 8SFF CTO server (P54205-B21) and Optical Drives (701498-B21, 726536-B21 and 726537-B21) are selected in the order, this Universal Media Bay Kit and ODD cable kit (P59602-B21) must in the order.
HPE Boot Controllers
Notes:
- The cable kit (P57013-B21) and Secondary LP riser must be selected together with the NS204i-u storage device.
- RAID 1 is preconfigured on this option and additional RAID cannot be applied on this Boot Device
$301
$215.00
HPE Optical Drives
$103
$75.00
$185
$159.00
$385
$275.00
Notes:
- If optical drive is selected along with 8 LFF CTO server (P54204-B21), then LFF ODD/DP Enablement Kit (P52150-B21) and ODD Cable Kit (P59602-B21) must be selected in the order.
- If optical drives is selected along with 8 LFF CTO server (P54204-B21), then 4LFF x1 SAS/SATA 12G Front Backplane Kit (P57114-B21) could not in the order to support 12 LFF drives at the front bay.
- If the 8SFF CTO server (P54205-B21) and Optical Drives (701498-B21, 726536-B21 and 726537-B21) are selected in the order, then the Universal Media Bay Kit (P57857-B21) and ODD cable kit (P59602-B21) must in the order.
Storage Controllers
Notes:
- When selecting SR RAID controllers for external storage (E208e, 804398-B21) and MR RAID controllers for internal storage(MR216i/MR416i/MR408i) in the order, please be aware these two products use different RAID configuration tools.
- Not supporting mixing of MR (MegaRAID) series internal controllers and SR (SmartRAID) series internal controllers
- PCIe plug-in form factor controllers are not supported in Secondary riser slot 6 position.
Essential RAID Controllers
Notes:
- This controller supports up to 8 SAS/SATA Drives (external)
- For more information on the HPE Smart Array E208i-p SR Gen10 Controller, please refer to the QuickSpecs
$333
$250.00
Tri-mode RAID Controllers
Notes:
- This controller supports up to 16 SAS/SATA/NVMe Drives
- Does not occupy a PCIe expansion slot
$980
$715.00
Notes:
- This controller supports up to 8 SAS/SATA/NVMe Drives
- Does not occupy a PCIe expansion slot
- 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) OR Smart Hybrid Capacitor w/ 145mm Cbl (P02377-B21) must be selected with this controller.
$1,029
$785.00
Notes:
- This controller supports up to 16 SAS/SATA/NVMe Drives
- Does not occupy a PCIe expansion slot
- 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) OR Smart Hybrid Capacitor w/ 145mm Cbl (P02377-B21) must be selected with this controller.
$1,610
$1,275.00
Notes: This controller supports up to 16 SAS/SATA/NVMe Drives
$1,350
$958.00
Notes:
- This controller supports up to 16 SAS/SATA/NVMe Drives
- 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) OR Smart Hybrid Capacitor w/ 145mm Cbl (P02377-B21) must be selected with this controller.
$1,850
$1,319.00
Controller Battery Cable Kits
Memory
Registered DIMMs (RDIMMs)
$333
$250.00
$512
$368.00
$333
$250.00
$657
$494.00
Notes: Mixing of x4 & x8 memory is not allowed
Drives
Hard Disk Drives
Enterprise - 12G SAS SFF/LFF HDD
Midline - 12G SAS - SFF HDD
Midline - 12G SAS - LFF HDD
$729
$536.00
$974
$785.00
Midline - 6G SATA - SFF HDD
Midline - 6G SATA - LFF HDD
$1,222
$819.00
$968
$795.00
$1,621
$1,158.00
SED (Self-Encryption Drive) Hard HDD
Solid State Drives
Read Intensive - 12G SAS - SFF - SSD
$1,789
$1,418.00
Mixed Use - 12G SAS - SFF - SSD
$1,988
$1,385.00
Mixed Use SAS LFF- SSD
Mixed Use - 6G SATA - SFF - SSD
$1,044
$865.00
$1,884
$1,346.00
$536
$383.00
$1,555
$1,249.00
$1,040
$743.00
Read Intensive - 6G SATA - SFF - SSD
$1,467
$1,048.00
$1,128
$806.00
$1,670
$1,193.00
Read Intensive 6G SATA - LFF SSD
Write Intensive NVMe SFF SSD
Read Intensive - NVMe - SFF - SSD
$1,250
$895.00
$5,979
$4,271.00
$9,570
$6,836.00
Mixed Use - NVMe - SFF - SSD
Networking
PCIe Adapters
1 Gigabit Ethernet adapters
10 Gigabit Ethernet adapters
10/25 Gigabit Ethernet adapters
100/200 Gigabit Ethernet adapters
Notes:
- The 100/200 Gigabit Ethernet Adapters does not support in Secondary riser slot 6 position.
- Maximum 3 100/200 Gigabit adapters are supported on HPE DL345 Gen11 with 4 riser enablement kit (P57116-B21) in the order.
- Maximum 5 100/200 Gigabit adapters are supported on HPE DL345 Gen11 with 6 riser enablement kit (P57117-B21) in the order.
OCP Adapters
1 Gigabit Ethernet OCP adapters
10 Gigabit Ethernet OCP Adapters
10/25 Gigabit Ethernet OCP adapters
100/200 Gigabit Ethernet adapters
Notes:
- Requires OCP upgrade cable kit (P56658-B21).
- The 100/200 Gigabit Ethernet Adapters does not support in OCP slot 22 position.
- Requires 6 Performance FAN kit in the order.
$1,571
$1,181.00
HPE InfiniBand
$1,288
$875.00
$1,680
$1,159.00
$2,823
$2,139.00
- Requires 6 Performance FAN kit when InfiniBand adapters in the order.
- Requires OCP upgrade cable kit (P56658-B21) if 200 Gigabit OCP adapters (P31323-B21, P31348-B21) are selected in the order.
- The infiniband Ethernet Adapters does not support in both OCP slot 22 position and Secondary riser slot 6 position.
- For more information, please visit: HPE InfiniBand Options for HPE ProLiant and Apollo Servers
Notes: Required to be in order when the following options are selected
o OCP InfiniBand network adapters (P31323-B21, P31348-B21)
o BCM 57504 10/25GbE 4p SFP28 Adaptor (P26269-B21)
o E810 100GbE 2p QSFP28 OCP3 Adptr (P22767-B21)
Power Supplies
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to 'right-size' a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid 'trapped' power capacity in the data center.
Notes:
- Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:
- HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE Power Cords and Cables for a full list of optional power cords.
Notes: Flex Slot Platinum Plus power supplies support power efficiency of up to 94% and include a C-14 power inlet connector that can support HPE Power Discovery Services (blue connector).
$182
$137.00
Notes: Flex Slot Platinum Plus power supplies support power efficiency of up to 94% and include a C-14 power inlet connector that can support HPE Power Discovery Services (blue connector).
$253
$182.00
Notes:
- Flex Slot universal power supplies support power efficiency of up to 94% and support both 277VAC/380VDC power inputs.
- HPE 1600W DC PSU Power Lug Option Kit (P36877-B21) must be selected along with this power supplies.
$585
$418.00
Notes:
- Flex Slot Platinum Plus power supplies support power efficiency of up to 94% and include a C-14 power inlet connector that can support HPE Power Discovery Services (blue connector).
- The power supply selected only supports high line voltage (200VAC to 240VAC)
$390
$275.00
Notes: Must be selected along with HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit (P17023-B21)
Storage Options
Emulex Fibre Channel HBAs
$1,373
$1,040.00
$1,707
$1,219.00
QLogic Fibre Channel HBAs
$2,063
$1,528.00
$2,315
$1,754.00
Processors
| NOTE: HPE server processor pricing is volatile and availability is unpredictable. Please select any CPU kit below and click Request Quote and submit the form to get the current pricing for that CPU kit. |
Processor Option Kits
$2,180
$1,706.00
$8,246
$6,247.00
$3,493
$2,495.00
$5,293
$4,010.00
$10,604
$8,033.00
$11,782
$8,926.00
Notes:
-For processors less thanor equal to240W, standard heat sink (P58458-B21) and 6 standard FAN kit(P58464-B21) are required.
-For processors more than or equal to 260W, performance heat sink kit (P58459-B21)and 6 performance FAN kit (P58465-B21) are required.
-For processors less than or equal to 300W is selected with 4LFF or 8SFF midtray is selected , 1U performance heat sink kit (P58457-B21) and 6 performance FAN kit (P58465-B21) are required.
-Above considerations are based on standard 8SFF, 8LFF and 24SFF CTO servers.
