HPE ProLiant DL345 Gen11 Networking Adapters

The DL345 Gen11 takes network adapters in its two OCP 3.0 slots and in up to six PCIe 5.0 slots on two risers. No embedded network ports; networking comes from an OCP 3.0 or stand-up adapter. HPE's QuickSpecs list 32 network adapters (Ethernet and InfiniBand) and 8 Fibre Channel HBAs for it.

  • 40 adapters
  • 1GbE to 200GbE · 32 and 64Gb Fibre Channel
  • New and refurbished
  • Tested or factory sealed

From the HPE ProLiant DL345 Gen11 QuickSpecs (a50004298enw, version 42, 02-November-2026).

Slot map

Where each adapter goes in a DL345 Gen11

OCP 3.0
Two OCP 3.0 slots (21 and 22), PCIe 5.0 x8 pp. 4, 24
Built-in ports
None pp. 14, 24
Primary riser
Slots 1–3: x16, x16, x16. On processor 1. + 1 other riser HPE lists for this position pp. 1, 4, 10
Secondary riser
Slots 4–6: PCIe 5.0 x16, x16, x16 (slot 4 with P57117-B21; slot 5 with P57117-B21). On processor 1. + 2 other risers HPE lists for this position pp. 1, 4, 10
HPE's words for each line
  • OCP 3.0 “OCP3.0 slot 2 PCIe 5.0 x8” (page 24) “OCP 3.0 slot 22” (page 4) “OCP 3.0 slot 21” (page 4)
  • Built-in ports “Network Ports None. Choice of OCP or stand-up card, supporting a wide array of NIC adapters” (page 14) “Notes: No embedded networking” (page 24)
  • Primary riser “1 (via Option Kit) PCIe 5.0 X16 X16 Full-height, Half-length slot” (page 10) “2 (via Option Kit) PCIe 5.0 X16 X16 Full-height, Half-length slot” (page 10) “3 (Default) PCIe 5.0 X16 X16 Full-height, Half-length slot” (page 10) “PCIe Slots 1,2,3 top to bottom.” (page 4) “The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution” (page 1)
  • Secondary riser “4 (via Option Kit) PCIe 5.0 X16 X16 Full-height, Half-length slot” (page 10) “5 (via Option Kit) PCIe 5.0 X16 X16 Full-height, Half-length slot” (page 10) “6 (Default) PCIe 5.0 X16 X16 Full-height, Half-length slot” (page 10) “Requires 6PCIe enablement kit (P57117-B21) to support six (6) PCIe slots” (page 10) “PCIe Slots 4,5,6 top to bottom.” (page 4) “The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution” (page 1)

From the HPE ProLiant DL345 Gen11 QuickSpecs (a50004298enw, version 42, 02-November-2026).

All DL345 Gen11 network adapters

The network adapters HPE's QuickSpecs list for the DL345 Gen11, grouped by slot and type. In each group the adapters in stock come first, then the ones our customers order most.

OCP 3.0 or PCIe on the DL345 Gen11?

OCP 3.0PCIe adapter
How manyTwo OCP 3.0 slots (21 and 22), PCIe 5.0 x8.Up to six PCIe 5.0 slots on two risers
What HPE has listed1GbE to 100GbE Ethernet; InfiniBand adapters1GbE to 200GbE Ethernet; InfiniBand adapters; 32 and 64Gb Fibre Channel HBAs
How to tell from the nameOCP3 in the nameNo OCP3 in the name

How to choose a DL345 Gen11 network adapter

Rule 1

Decide the OCP 3.0 adapter first

The OCP1 Upgrade Cable Kit P56658-B21 gives OCP slot 21 PCIe x16 bandwidth; it is required with the OCP adapters P26269-B21 and P22767-B21 and the OCP InfiniBand adapters P31323-B21 and P31348-B21.

HPE: “Notes: Requires OCP1 upgrade cable kit (P56658-B21) to support PCIe Gen5 x16 bandwidth on OCP21 slot” (page 48)

Rule 2

Match the cabling to the switch

DAC cables or fiber transceivers and cables are bought separately.

HPE: “Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber- optic environments must be purchased separately.” (page 47)

Rule 3

Check the cooling

100/200GbE and InfiniBand adapters need the Performance Fan kit; networking options are subject to HPE's recommended ambient temperature.

HPE: “Requires Performance Fan kit for 100/200 Gigabit Ethernet Adapters or InfiniBand adapters.” (page 47)

Rule 4

Mind the slot rules

The GPU CTO server's front slots 9, 11, 14 and 16 (PCIe 5.0 x16, full-height, full-length) do not support external cabling.

HPE: “The extension slots at the front of the GPU CTO server do not support external cabling.” (page 12)

DL345 Gen11 adapter questions

How many network adapters can a DL345 Gen11 take?

The DL345 Gen11 takes network adapters in its two OCP 3.0 slots and in up to six PCIe 5.0 slots on two risers. The OCP1 Upgrade Cable Kit P56658-B21 gives OCP slot 21 PCIe x16 bandwidth; it is required with the OCP adapters P26269-B21 and P22767-B21 and the OCP InfiniBand adapters P31323-B21 and P31348-B21.

Does the DL345 Gen11 have network ports built in?

No embedded network ports; networking comes from an OCP 3.0 or stand-up adapter. BTO models come with a primary networking card pre-selected; CTO servers take an OCP 3.0 or a select stand-up adapter as primary networking, with further stand-up adapters optional; Network Choice models have no embedded LOM.

Are cables or transceivers included?

DAC cables or fiber transceivers and cables are bought separately. HPE: “Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber- optic environments must be purchased separately.” (page 47).

What does “Listed in QuickSpecs version 42” mean?

It means the adapter is in version 42 of HPE's QuickSpecs for the DL345 Gen11, the edition this page is built from.

Which Fibre Channel HBAs does HPE list for the DL345 Gen11?

HPE lists Emulex (SN1610E, SN1700E) and QLogic (SN1610Q, SN1700Q) Fibre Channel HBAs, 32Gb and 64Gb, 1-port and 2-port, under HPE Storage Options. HPE's QuickSpecs list 8 Fibre Channel HBAs for it, by model: Emulex SN1610E and SN1700E; QLogic SN1610Q and SN1700Q. They are in the Fibre Channel HBAs section of this page.

What if the adapter I need is out of stock?

Out of stock today does not mean unavailable: we can often source this part. Add it to a quote request and we reply with current pricing and availability. Every message, quotes included, is answered within 24 hours.

More for the DL345 Gen11

DL345 Gen11 storage controllersDL345 Gen11 drivesDL345 Gen11 memoryDL345 Gen11 processorsDL345 Gen11 power suppliesAll DL345 Gen11 partsDL380 Gen11 networking adaptersDL360 Gen11 networking adaptersDL345 Gen10 Plus networking adaptersDL345 Gen12 networking adapters

Most ordered for the DL345 Gen11

The adapters on this page our customers order most, for any server. Each card shows only while the store has it in stock.

OCP 3.0 adapters

10 adapters

Two OCP 3.0 slots (21 and 22), PCIe 5.0 x8.

PCIe Ethernet adapters

16 adapters

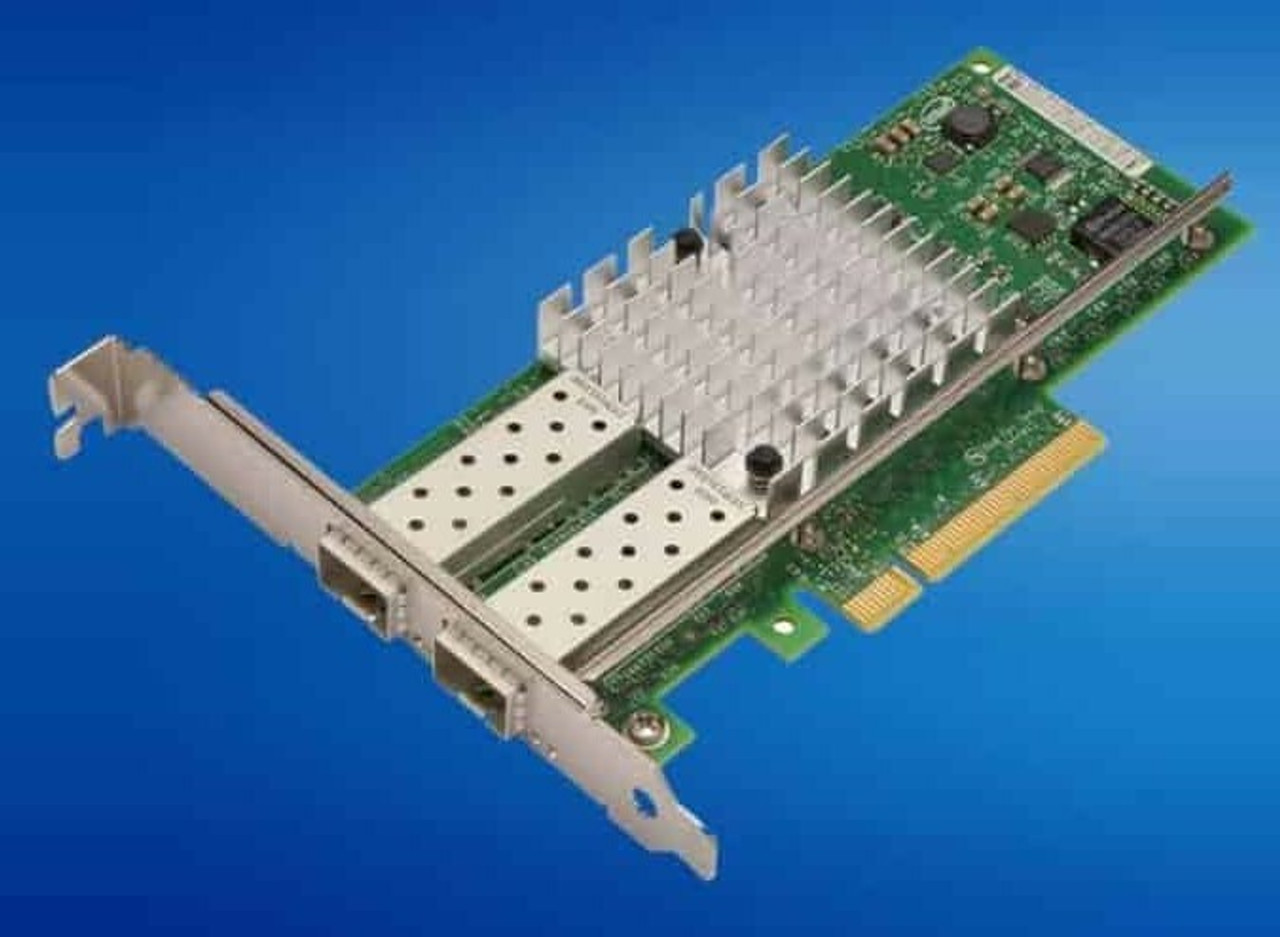

Stand-up cards for the PCIe slots.

InfiniBand and Omni-Path adapters

6 adapters

For InfiniBand and Omni-Path fabrics.

Kits and risers HPE lists for these slots

1 kit

Parts that go with the adapters in these slots. They are not counted with the adapters, and the filters leave them out.

Fibre Channel HBAs for the DL345 Gen11

HPE lists Emulex (SN1610E, SN1700E) and QLogic (SN1610Q, SN1700Q) Fibre Channel HBAs, 32Gb and 64Gb, 1-port and 2-port, under HPE Storage Options. QuickSpecs page 51

Fibre Channel host bus adapters

8 HBAs
