HPE ProLiant DL365 Gen11 Parts
Find genuine HPE ProLiant DL365 Gen11 parts to keep your server running at peak performance. Whether you need to replace a failed component or upgrade for enhanced computing power, we offer a complete selection of memory, drives, power supplies, storage controllers, networking, processors, and more.
Available HPE DL365 Gen11 Parts:
- Memory: Upgrade with high-performance DDR5 RAM.
- Drives: Choose from enterprise SSDs, NVMe, SAS, and SATA HDDs.
- Storage Controllers: Ensure data protection with HPE Smart Array RAID controllers.
- Networking: High-speed Ethernet adapters and NICs for superior connectivity.
- Power Supplies: Redundant and energy-efficient power solutions.
- Processors: AMD EPYC CPUs for maximum compute power.
Built for enterprise workloads, virtualization, and cloud computing, these components ensure maximum efficiency and reliability in your DL365 Gen11 server.
✅ Need a specific HPE DL365 Gen11 part? Browse our selection or contact us for assistance.
Unique Options
Riser Kits
The CTO or BTO server has 1x Primary riser by default. Here are the additional risers available to select
Notes:
- Both riser kits are in the secondary slot.
- Low Profile Secondary riser kit (P55029-B21) must be selected when HPE NS204i-u Gen11 NVMe boot device (P48183-B21) in the order.

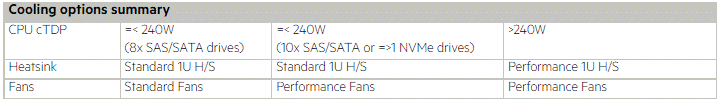

Cooling Options
Notes:
- Mixing of both Standard and Performance Heatsink is not allowed
- If any of 'U.3 x4 drive cage' is selected, Performance Heatsink and 7 Performance Fans must be selected
- For processors less than 240W with 8x SAS/SATA drives configured, standard heat sink (P58456-B21) and standard fan kit(P58461-B21) are required
- For processors less than 240W with 10x SAS/SATA or NVMe drives configured, standard heat sink (P58456-B21) and performance fan kit(P58462-B21) are required
- For processors above 240W, performance heat sink kit (P58457-B21) and performance fan kit (P58462-B21) are required
Notes:
- Gen11 Fan Kits contain only 1 fan
- 1-socket config 5 Standard Fan kits, 2-socket config needs 7 Standard Fan kits
- 1-socket config 5 Performance Fan kits, 2-socket config needs 7 Performance Fan kits
HPE Boot Controllers
Notes:
- NS204i-u is the HPE Gen11 Hot Pluggable M.2 NVMe RAIDed Boot Device
- HPE DL3X5 Gen11 NS204i-u NVMe Boot Cable Kit is required when the NS204i-u boot device is configured along with the 4LFF rear cage
- If NS204i-u Gen11 is selected, then 7 quantity of fan must be selected
- If NS204i-u Gen11 is selected and secondary riser is required, HPE DL3X5 Gen11 1U x16 LP Sec Riser Kit must be selected
HPE Optical Drives and Option Kit
$103
$75.00
$185
$159.00
$385
$275.00
Notes:
- Maxmium 1 Optical Drive is supported
- ODD needs selection of a HPE DL365 Gen11 2SFF DP ODD Blank Kit
Storage Controllers
Notes:
- When selecting SR RAID controllers for external storage (E208e, 804398-B21) and MR RAID controllers for internal storage(MR216i/MR416i/MR408i) in the order, please be aware these two products use different RAID configuration tools.
- Not supporting mixing of MR (MegaRAID) series internal controllers and SR (SmartRAID) series internal controllers
- MR (MegaRAID) series controllers are not supported with Intelligent Provisioning feature
Essential RAID Controllers
Notes:
- This controller supports up to 8 SAS/SATA Drives (external)
- For more information on the HPE Smart Array E208i-p SR Gen10 Controller, please refer to the QuickSpecs
$333
$250.00
Tri-mode RAID Controllers
Notes:
- This is an OROC type controller which takes up an OCP slot
- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; 8 x2 NVMe drives can be supported)
$980
$715.00
Notes:
- This is an OROC type controller which takes up an OCP slot
- This controller supports up to 8 SAS/SATA/NVMe Drives (Only 2 x4 NVMe drives can be supported; 4 x2 NVMe drives can be supported)
$1,029
$785.00
Notes:
- This is an OROC type controller which takes up an OCP slot
- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; 8 x2 NVMe drives can be supported)
$1,610
$1,275.00
Notes:
- This is an PCIe type controller which takes up a PCIe slot
- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; 8 x2 NVMe drives can be supported)
$1,350
$958.00
Notes:
- This is an PCIe type controller which takes up a PCIe slot
- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; 8 x2 NVMe drives can be supported)
$1,850
$1,319.00
Controller Battery Cable Kits
Notes:
- The two 260mm battery cable kit can’t be selected together.
- The Extension cable kit is required for either the selection of Hybrid Capacitor or 96W Smart Storage Battery
Memory
Registered DIMMs (RDIMMs)
$333
$250.00
$512
$368.00
$333
$250.00
Drives
Hard Disk Drives
Enterprise - 12G SAS - SFF HDD
Midline - 12G SAS - SFF HDD
Midline - 6G SATA - SFF HDD
SED (Self-Encryption Drive)
Solid State Drives
Read Intensive - 12G SAS - SFF - SSD
$1,789
$1,418.00
Mixed Use - 12G SAS - SFF - SSD
$1,988
$1,385.00
Mixed Use - 6G SATA - SFF - SSD
$1,044
$865.00
$1,884
$1,346.00
$536
$383.00
$1,555
$1,249.00
$1,040
$743.00
Read Intensive - 6G SATA - SFF - SSD
$1,467
$1,048.00
$1,128
$806.00
$1,670
$1,193.00
Read Intensive - NVMe - SFF - SSD
$1,250
$895.00
$5,979
$4,271.00
$9,570
$6,836.00
Mixed Use - NVMe - SFF - SSD
Networking
PCIe Adapters
1 Gigabit Ethernet adapters
10 Gigabit Ethernet adapters
10/25 Gigabit Ethernet adapters
100/200 Gigabit Ethernet adapters
Notes:
- Almost all PCIe Networking Cards need 7x Performance Fans. Refer to OCA configurator for exceptions and details
- Ambient temperature for above cards (P08458-B21, P25960-B21, P21112-B21, P10180-B21) is 25C under configuration of 8SFF SAS/SATA/NVMe/SAS4, with AOC (Active Optical Cables)
- Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. Please see the related NIC QuickSpecs for Technical Specifications and additional information: https://h20195.www2.hpe.com/v2/getpdf.aspx/A00002507ENW.pdf
OCP Adapter
1 Gigabit Ethernet OCP adapters
10 Gigabit Ethernet OCP Adapters
10/25 Gigabit Ethernet OCP adapters
100/200 Gigabit Ethernet adapters
Notes:
- Almost all PCIe Networking Cards need 7x Performance Fans. Refer to OCA configurator for exceptions and details
- P22767-B21 and P26269-B21 needs selection of an OCP upgrade cable kit
- Ambient temperature for above cards (P26269-B21) is 25C under configuration of 8SFF SAS/SATA/NVMe/SAS4, with AOC (Active Optical Cables)
- P22767-B21 not allowed to select under configuration of 8SFF SAS/SATA/NVMe/SAS4, with AOC (Active Optical Cables)
- Ambient temperature for above cards (P22767-B21) is 25C under configuration of 8SFF SAS/SATA/NVMe/SAS4, with Direct Attach Cable (DAC)
HPE InfiniBand
$1,288
$875.00
$1,680
$1,159.00
$2,823
$2,139.00
Notes:
- All InfiniBand options require 6 performance fan kit
- For InfiniBand OCP options, OCP upgrade kit is needed
- Ambient temperature for above cards (P23666-B21, P23664-B21, P45641-B21, P45642-B21, P31323-B21) is 25C under configuration of 8SFF SAS/SATA/NVMe/SAS4, with AOC (Active Optical Cables)
- P31324-B21 and P31348-B21 are not allowed to select under configuration of 8SFF SAS/SATA/NVMe/SAS4, with AOC (Active Optical Cables)
- Ambient temperature for above cards (P31324-B21 and P31348-B21) is 25C under configuration of 8SFF SAS/SATA/NVMe/SAS4, with Direct Attach Cable (DAC)
Notes: This cable kit cannot be selected when 2 processors are configured. When this kit is selected, max of 1 OCP card can be selected per server
Notes: This cable kit needs 2 processors configured
$181
$137.00
Power Supplies
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to 'right-size' a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid 'trapped' power capacity in the data center.
Notes:
- Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:
- HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE Power Cords and Cables for a full list of optional power cords.
Notes: Flex Slot Platinum Plus power supplies support power efficiency of up to 94% and include a C-14 power inlet connector that can support HPE Power Discovery Services (blue connector).
$253
$182.00
Notes:
- Flex Slot universal power supplies support power efficiency of up to 94% and support both 277VAC/380VDC power inputs.
- HPE 1600W DC PSU Power Lug Option Kit (P36877-B21) must be selected along with this power supplies.
$585
$418.00
Notes:
- Flex Slot Platinum Plus power supplies support power efficiency of up to 94% and include a C-14 power inlet connector that can support HPE Power Discovery Services (blue connector).
- The power supply selected only supports high line voltage (200VAC to 240VAC)
$390
$275.00
Notes: Must be selected along with HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit (P17023-B21)
Storage Options
Emulex Fibre Channel HBAs
$1,373
$1,040.00
$1,707
$1,219.00
QLogic Fibre Channel HBAs
$2,063
$1,528.00
$2,315
$1,754.00
Processors
| NOTE: HPE server processor pricing is volatile and availability is unpredictable. Please select any CPU kit below and click Request Quote and submit the form to get the current pricing for that CPU kit. |
Notes:
-Mixing of 2 different processor models are NOT allowed. For example: first processor, select P53696-B21 then for second processor, select P53696-B21 as well.
-Processor kits don't include heat sink and fans.
$2,180
$1,706.00
$3,493
$2,495.00
$8,246
$6,247.00
$11,782
$8,926.00
$11,782
$8,926.00
$8,246
$6,247.00
$10,604
$8,033.00
Notes:
-For processors less than 240Wand drive cage type is 8SFF, standard heatsink are required. User is allowed to change to performance heatsink.
-Standard fan kit is only allowed when processors are less than 240W,drive cage type is 8SFF and drives configured are less than 8x SAS or SATA drives.
-If Processor wattage is above 240W then Performance Heat Sink and Performance fan kit must be selected. This rule applies to all CTO servers.
