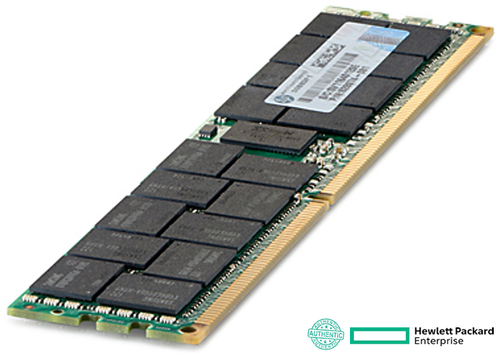

HPE 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
Listed servers for this part are being looked up.
- Secure checkout
- Card, P-card, purchase order, ACH, wire transfer, PayPal
- Tested or factory sealed
- Free Ground shipping on US orders over $100
need a formal quote?
Request a quote by email in PDF format, valid for 24 hours
Part number cross-reference
- Part number
- 689911-071
Overview
This item, 689911-071, is the HPE assembly number for the product described as 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit. Further details below.
Boost your server's multitasking capabilities with this HPE 8GB DDR3-1600 Registered memory module. Operating at 1600 MHz with a CAS Latency of CL11, this PC3-12800R DIMM provides a reliable and cost-effective way to increase your system's memory capacity. The ECC (Error-Correcting Code) feature ensures data integrity for critical applications.
This dual-rank module is designed for seamless integration with compatible HPE ProLiant servers. This memory kit is system specific. Compatible HPE ProLiant servers includes but may not be limited to DL380p Gen8, DL360p Gen8, DL560 Gen8, DL380e Gen8, ML350p Gen8, DL360e Gen8, DL160 Gen8, BL420c Gen8, BL660c Gen8, ML350e Gen8, SL230s Gen8, SL250s Gen8, SL270s Gen8 and WS460c Gen8. Upgrade your server's memory and enhance overall performance.
HPE Option Part #: 690802-B21
HPE Spare Part #: 698807-001
HPE Assembly Part #: 689911-071
PRODUCT SPECIFICATIONS FOR 689911-071:
- CAS Latency: CL11
- Chips Organization: X4
- Data Integrity Check: ECC
- Form Factor: DIMM 240-pin
- Memory Specification Compliance: PC3-12800
- Memory Speed: 1600 MHz
- RAM Features: Dual Rank
- Registered or Buffered: Registered
- Storage Capacity: 8 GB
- Technology: DDR3 SDRAM
- Upgrade Type: System specific
- Form Factor: DIMM 240-pin
- Weight: 0.3 ounces
- Product Dimensions: 3.5 x 5.5 x 0.3 inches
COMPATIBLE WITH:
PROLIANT BL SERIES
PROLIANT DL SERIES
PROLIANT ML SERIES
PROLIANT SL SERIES
PROLIANT WS SERIES
** This list may not be complete. Contact us via Live Chat if you have any questions about compatibility.
HPE PARTSURFER INFO FOR 689911-071 (690802-B21)
| Spare PN | Description | |
|---|---|---|
 | 698807-001 | 8GB, 1600MHz, PC3-12800R-11, DDR3, dual-rank x4, 1.50V, registered dual in-line memory module (DIMM) |
