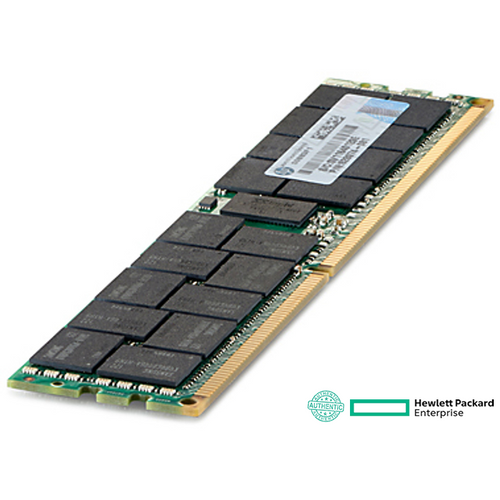

HPE 16GB (1 x 16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit
Fits 11 HPE ProLiant server models. See the list
- Secure checkout
- Card, P-card, purchase order, ACH, wire transfer, PayPal
- Tested or factory sealed
- Free Ground shipping on US orders over $100
need a formal quote?
Request a quote by email in PDF format, valid for 24 hours
Part number cross-reference
- Part number
- 726720-B21
Overview
This item, 726720-B21, is the HPE option part number for the product described as 16GB (1 x 16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit. Further details below.
Upgrade your Gen9 HPE servers with the 726720-B21 HPE 16GB (1 x 16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit. This reliable memory solution features ECC for data integrity and a load-reduced configuration to optimize performance. Designed specifically for Gen9 servers, this LRDIMM module boosts speeds up to 2133 MHz, ensuring seamless operation and enhanced productivity.
HPE Option Part #: 726720-B21
HPE Spare Part #: 774173-001
HPE Assembly Part #: 752371-081
PRODUCT SPECIFICATIONS FOR 726720-B21:
- CAS Latency: CL15
- Chips Organization: X4
- Data Integrity Check: ECC
- Form Factor: LRDIMM 288-pin
- Latency Timings: 15-15-15
- Memory Specification Compliance: PC4-17000
- Memory Speed: 2133 MHz
- RAM Features: Dual Rank , Sixteen banks
- Registered or Buffered: Load-Reduced
- Storage Capacity: 16 GB
- Supply Voltage: 1.2 V
- Technology: DDR4 SDRAM
- Type: DRAM
- Upgrade Type: System specific
- Dimensions: 3.5 x 5.5 x 0.2 inches
- Weight: 1 ounces
COMPATIBLE WITH:
PROLIANT BL SERIES
PROLIANT DL SERIES
PROLIANT ML SERIES
** This list may not be complete. Contact us via Live Chat if you have any questions about compatibility.
FREQUENTLY ASKED QUESTIONS FOR 726720-B21:
- Which servers are compatible with the 726720-B21?
The 726720-B21 is compatible with HPE ProLiant Gen9 servers, including BL460c, DL120, DL160, DL180, DL388, DL60, DL80, ML150, and ML350 models. - What is the benefit of ECC in the 726720-B21?
ECC in the 726720-B21 helps prevent data corruption, ensuring reliable and smooth operation for your critical applications. - How does the 726720-B21 improve server performance?
With a speed of 2133 MHz and dual rank x4 configuration, the 726720-B21 increases data transfer rates and overall system efficiency.
HPE PARTSURFER INFO FOR 726720-B21
| Spare PN | Description | |
|---|---|---|
| 774173-001 | 16GB, 2133MHz, PC4-2133P-L, DDR4, dual-rank x4, 1.20V, CAS-15-15-15, load reduced dual in-line memory module (LRDIMM) |
Last Updated: 2026-04-10
Other sizes in this family
| Part number | Capacity | Type | Rank | Price | Availability |
|---|
Working out how many you need? Each server's memory page counts the modules for the capacity you want: see Compatible servers.
Specifications
Compatible servers
Each server opens that model's memory page, with its slot rules and a kit picker.
Part numbers
Every number below identifies this same part. Match any of them to the label on the part you are replacing.
Questions about 726720-B21
Warranty and returns
5-year replacement warranty
Covered against hardware failure for 5 years from the date of purchase. While HPE's own warranty runs, HPE replaces a failed part through the HPE Enterprise Support Center. After that, send it back to us for a working replacement; you ship it to us and we pay Ground or Economy shipping on the replacement.
Ordered the wrong part?
It is the customer's responsibility to verify compatibility before ordering. A part ordered by mistake can be returned for a refund, less a 25% restocking fee, within 5 business days of receipt. Freight is not refunded, and factory-sealed items can only be returned unopened. Check Compatible servers before you order.
Start a return or claim
Complete the RMA request form and send it to us, or choose Warranty or return on the contact form.
Reviews of this part
1 review
Great
“Just what I needed to upgrade our Gen9 servers.”
