836270-001 HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller (HPE Option #: 804405-B21)

(No reviews yet) Write a Review
NEXT DAY Delivery available if ordered by 5pm ET M-F or FREE Ground shipping in USA
In Stock: Qty 19
1 Year


Price: $1,690.00
Today's Price: $1,175.00
Qty 6+:
Qty 12+:

need a formal quote?

Request a quote by email in PDF format, valid for 14 days

Product Overview

This item, 836270-001, is the HPE spare part number for the product described as Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller. Further details below.

HPE Option Part #: 804405-B21
HPE Spare Part #: 836270-001

HPE Assembly Part #: n/a


  • Product Line: HPE Smart Array
  • Model: P408e-p SR Gen10
  • Buffer Size: 4 GB
  • Channel Quantity: 8
  • Data Transfer Rate: 12 Gbit/s
  • Controller Interface: SATA 6Gb/s / SAS 12Gb/s
  • RAID Levels: RAID 0, RAID 1, RAID 1 ADM, RAID 10, RAID 10 ADM, RAID 5, RAID 50, RAID 6, RAID 60
  • Interface Provided: 2 x SATA 6Gb/s / SAS 12Gb/s
  • Form Factor (Storage Controller): Plug-in card
  • Host Bus Interface: PCIe 3.0 x8
  • Operating System Required: CentOS, Citrix XenServer, ClearOS, Microsoft Windows Hyper-V Server, Microsoft Windows Server, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, VMware vSphere (ESXi)
  • Supported Devices: Disk array (RAID), Hard drive
  • Product Type: Storage controller (RAID)

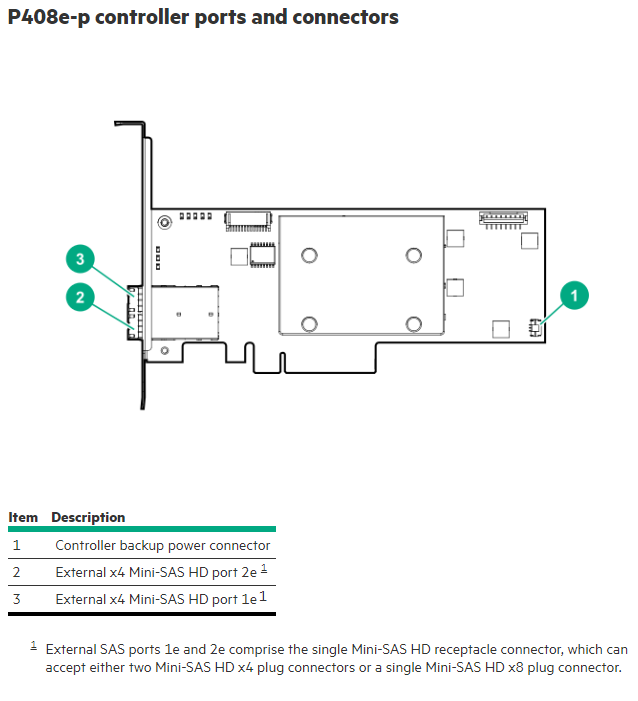

  • P408e-p controller ports and connectors

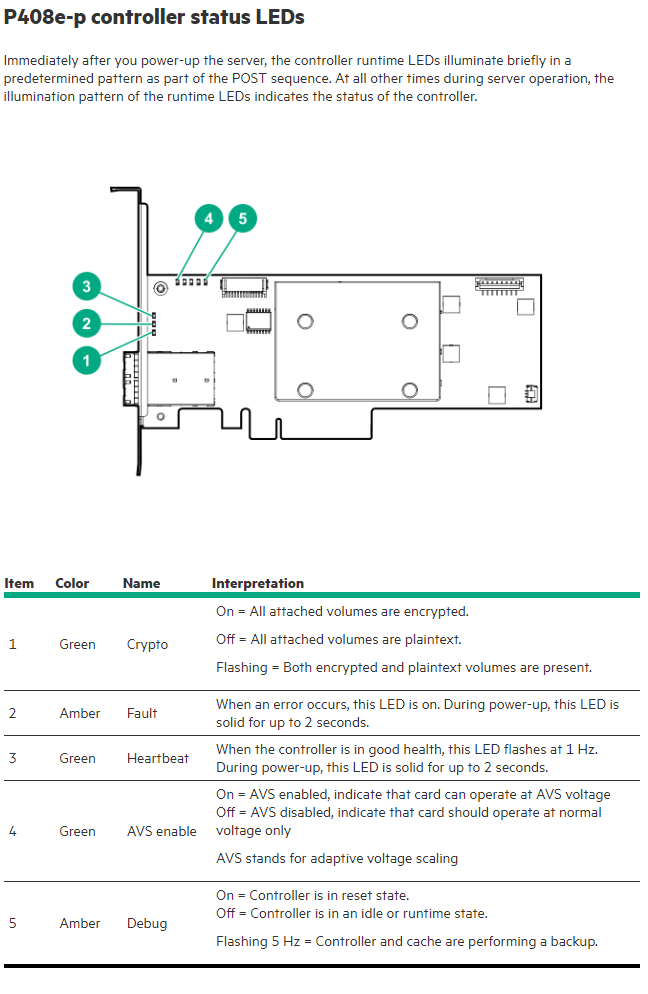

  • P408e-p controller status LEDs

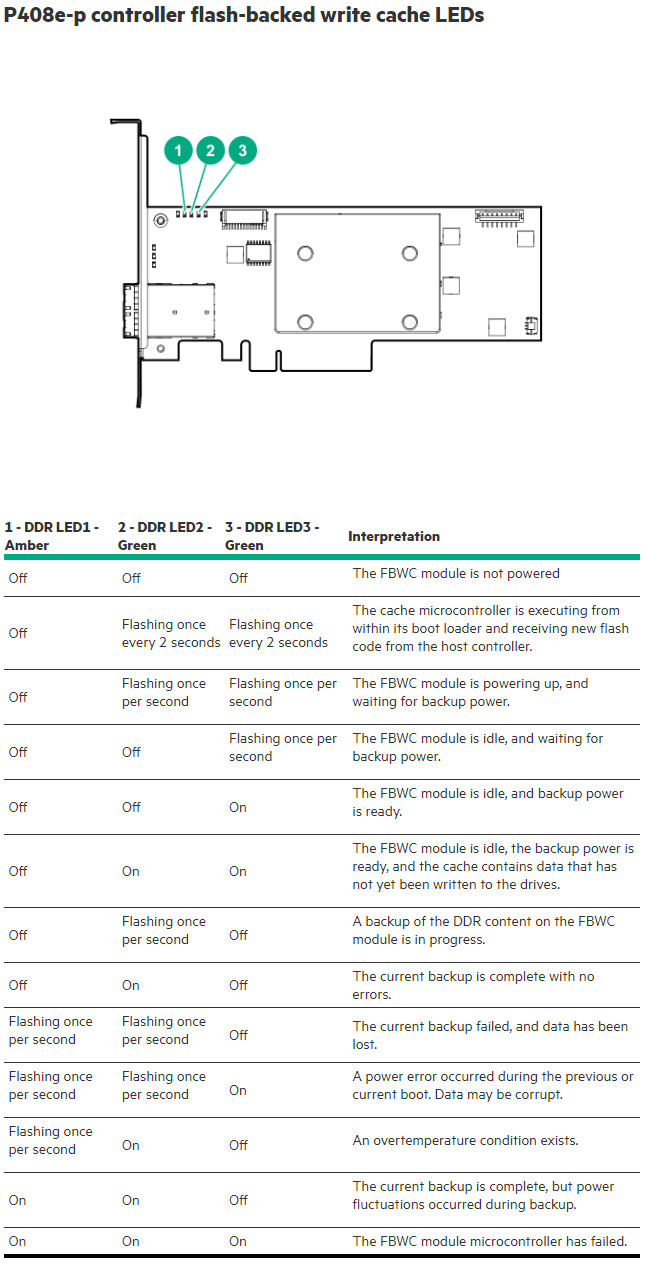

  • P408e-p controller FBWC LEDs

Compatible with:
DL20 Gen10
DL360 Gen10
DL380 Gen10
DL560 Gen10
DL580 Gen10
ML110 Gen10
ML350 Gen10
✅ and possibly others
Contact us via Live Chat if you have any questions about compatibility.

Quickspecs for 836270-001

Last updated: 9/16/2023
