HPE ProLiant DL385 Gen11 Parts
Find genuine HPE ProLiant DL385 Gen11 parts to keep your server running at peak performance. Whether you need to replace a failed component or upgrade for enhanced computing power, we offer a complete selection of memory, drives, power supplies, storage controllers, networking, processors, and more.
Available HPE DL385 Gen11 Parts:
- Memory: Upgrade with high-performance DDR5 RAM.
- Drives: Choose from enterprise SSDs, NVMe, SAS, and SATA HDDs.
- Storage Controllers: Ensure data protection with HPE Smart Array RAID controllers.
- Networking: High-speed Ethernet adapters and NICs for superior connectivity.
- Power Supplies: Redundant and energy-efficient power solutions.
- Processors: AMD EPYC CPUs for maximum compute power.
Built for enterprise workloads, virtualization, and cloud computing, these components ensure maximum efficiency and reliability in your DL385 Gen11 server.
✅ Need a specific HPE DL385 Gen11 part? Browse our selection or contact us for assistance.
Unique Options
Riser Kits
The CTO or BTO server has 1x Primary riser (slot3) by default. Here are the additional risers available to select
Notes:
- This provides Slot6 in the Secondary position
- This requires the 2nd processor
- This riser kit is required to select the 2x16 Secondary Riser Upgrade Kit
Notes:
- This provides Slot4 and Slot5 in the Secondary position
- This requires the 2nd processor
- To select this kit, the 1x16 Secondary Riser Kit is required
$1,236
$936.00
Notes:
- This provides one Secondary riser positioned below the 4LFF rear cage when it is configured
- This riser kit is required when NS204i-u NVMe Boot Device is selected along with 4LFF rear cage selection
Cooling Options
Notes: When Standard or Performance 2U Heat Sink Kit is selected, Standard/Perf Air Baffle Kit is required
Notes: When Maximum Performance 2U Heat Sink Kit is selected, Hi-Perf Air Baffle Kit is required
$268
$203.00
Notes:
- Gen11 Fan Kits contain only 1 fan
- 1-socket config 6 Standard Fan kits, 2-socket config needs 6 Standard Fan kits
- 1-socket config 4 Performance Fan kits, 2-socket config needs 6 Performance Fan kits
HPE Boot Controllers
Notes:
- NS204i-u is the HPE Gen11 Hot Pluggable M.2 NVMe RAIDed Boot Device
- HPE DL3X5 Gen11 NS204i-u NVMe Boot Cable Kit is required when the NS204i-u boot device is configured along with the 4LFF rear cage
- If HPE DL3X5 Gen11 Tertiary NS204i-u Enablement Kit is configured, then Tertiary riser kit cannot be selected
- If HPE DL3X5 Gen11 Secondary NS204i-u Enablement Kit is configured, then 2x16 Secondary Upgrade Riser Kit cannot be selected
HPE Optical Drives
$103
$75.00
$185
$159.00
$385
$275.00
Notes:
- Maxmium 1 Optical Drive is supported
- ODD needs Universal Media Bay for 8SFF CTO Server
Memory
Notes:
- Memory DIMM availability with a server platform is dependent upon completion of certification testing.
- The maximum memory speed is a function of the memory type, memory configuration, and processor model.
- System may throttle if ambient temp. is over 30C.
- Memory compatibility may vary or be limited within a specific server family depending upon the specific configuration being requested. Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration. For this reason, some HPE memory DIMMs may be qualified for a server model or family and yet occasionally not be supported with limited configurations within that server family. Please consult with the HPE server Quickspecs or your HPE representative if you have any questions regarding memory compatibility with a specific HPE server configuration.
Registered DIMMs (RDIMMs)
$333
$250.00
$512
$368.00
$333
$250.00
$657
$494.00
Notes:
- Mixing of x4 & x8 memory is not allowed
Storage Controllers
Notes:
- When selecting SR RAID controllers for external storage (E208e, 804398-B21) and MR RAID controllers for internal storage(MR216i/MR416i/MR408i) in the order, please be aware these two products use different RAID configuration tools.
- Not supporting mixing of MR (MegaRAID) series internal controllers and SR (SmartRAID) series internal controllers
- MR (MegaRAID) series controllers are not supported with Intelligent Provisioning feature
Tri-mode RAID Controllers
Notes:
- This is an OROC type controller which takes up an OCP slot
- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; 8 x2 NVMe drives can be supported)
$980
$715.00
Notes:
- This is an OROC type controller which takes up an OCP slot
- This controller supports up to 8 SAS/SATA/NVMe Drives (Only 2 x4 NVMe drives can be supported; 4 x2 NVMe drives can be supported)
$1,029
$785.00
Notes:
- This is an OROC type controller which takes up an OCP slot
- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; 8 x2 NVMe drives can be supported)
$1,610
$1,275.00
Notes:
- This is an PCIe type controller which takes up a PCIe slot
- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; 8 x2 NVMe drives can be supported)
$1,350
$958.00
Notes:
- This is an PCIe type controller which takes up a PCIe slot
- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; 8 x2 NVMe drives can be supported)
$1,850
$1,319.00
Controller Battery Cable Kits
Notes:
- The two 260mm battery cable kit can’t be selected together.
- The Extension cable kit is required for either the selection of Hybrid Capacitor or 96W Smart Storage Battery
Drives
Hard Disk Drives
Enterprise - 12G SAS - SFF HDD
Midline - 12G SAS - SFF HDD
Midline - 12G SAS - LFF HDD
$729
$536.00
$974
$785.00
Midline - 6G SATA - SFF HDD
Midline - 6G SATA - LFF HDD
$1,222
$819.00
$968
$795.00
$1,621
$1,158.00
SED (Self-Encryption Drive)
Solid State Drives
Read Intensive - 12G SAS - SFF - SSD
$1,789
$1,418.00
Mixed Use - 12G SAS - SFF - SSD
$1,988
$1,385.00
Mixed Use SAS- LFF- SSD
Mixed Use - 6G SATA - SFF - SSD
$1,044
$865.00
$1,884
$1,346.00
$536
$383.00
$1,555
$1,249.00
$1,040
$743.00
Read Intensive - 6G SATA - SFF - SSD
$1,467
$1,048.00
$1,128
$806.00
$1,670
$1,193.00
Read Intensive - 6G SATA - LFF - SSD
Read Intensive - NVMe - SFF - SSD
$1,250
$895.00
$5,979
$4,271.00
$9,570
$6,836.00
Mixed Use - NVMe - SFF - SSD
Networking
PCIe Adapters
1 Gigabit Ethernet adapters
10 Gigabit Ethernet adapters
10/25 Gigabit Ethernet adapters
100/200 Gigabit Ethernet adapters
OCP Adapter
1 Gigabit Ethernet OCP adapters
10 Gigabit Ethernet OCP Adapters
10/25 Gigabit Ethernet OCP adapters
100/200 Gigabit Ethernet adapters
Notes:
- Almost all PCIe Networking Cards need 6x Performance Fans. Refer to OCA configurator for exceptions and details
- P22767-B21 and P26269-B21 needs selection of an OCP upgrade cable kit
HPE InfiniBand
$1,288
$875.00
$1,680
$1,159.00
$2,823
$2,139.00
Notes:
- All InfiniBand options require 6 performance fan kit
- For InfiniBand OCP options, OCP upgrade kit is needed
- 200Gb 2-port OCP option cannot be supported with Mid Cages due to thermal restriction
Notes:
- This cable kit cannot be selected when 2 processors are configured
Notes:
- This cable kit needs 2 processors configured
- When this cable kit is selected then the Secondary Riser Upgrade Kit cannot be configured
- When this cable kit is selected then 8SFF x4 U.3 Mid Cage cannot be supported with Direct Attach
$181
$137.00
Power Supplies
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to 'right-size' a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid 'trapped' power capacity in the data center.
Notes:
- Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: https://poweradvisorext.it.hpe.com/?Page=Index
- HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE Power Cords and Cables for a full list of optional power cords.
Notes: Flex Slot Platinum Plus power supplies support power efficiency of up to 94% and include a C-14 power inlet connector that can support HPE Power Discovery Services (blue connector).
$253
$182.00
Notes:
- Flex Slot universal power supplies support power efficiency of up to 94% and support both 277VAC/380VDC power inputs.
- HPE 1600W DC PSU Power Lug Option Kit (P36877-B21) must be selected along with this power supplies.
$585
$418.00
Notes:
- Flex Slot Platinum Plus power supplies support power efficiency of up to 94% and include a C-14 power inlet connector that can support HPE Power Discovery Services (blue connector).
- The power supply selected only supports high line voltage (200VAC to 240VAC)
$390
$275.00
Notes: Must be selected along with HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit (P17023-B21)
Storage Options
Emulex Fibre Channel HBAs
$1,373
$1,040.00
$1,707
$1,219.00
QLogic Fibre Channel HBAs
$2,063
$1,528.00
$2,315
$1,754.00
Processors
| NOTE: HPE server processor pricing is volatile and availability is unpredictable. Please select any CPU kit below and click Request Quote and submit the form to get the current pricing for that CPU kit. |
Notes:
-Mixing of 2 different processor models are NOT allowed. For example: first processor, select P53696-B21 then for second processor, select P53696-B21 as well.
-Processor kits don't include heat sink and fans.
Processor Option Kits
$2,180
$1,706.00
$3,493
$2,495.00
$8,246
$6,247.00
$11,782
$8,926.00
$11,782
$8,926.00
$8,246
$6,247.00
$10,604
$8,033.00

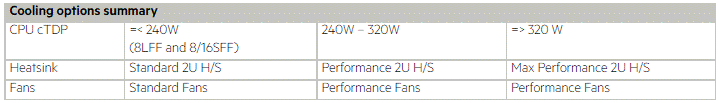

Notes:
-For processors less than 240W, standard heatsink and standard fan kit are required. User is allowed to change to performance/max performance heatsink and performance fan kit
-If Processor wattage is above 240W and below 300W then High Performance Heat Sink and High Performance fan kit must be selected
-If Processor wattage is above 300W then Maximum Performance HS and Max Performance fan kit must must be selected
-If Processor is above 300W then Mid Cage cannot be selected
